Description

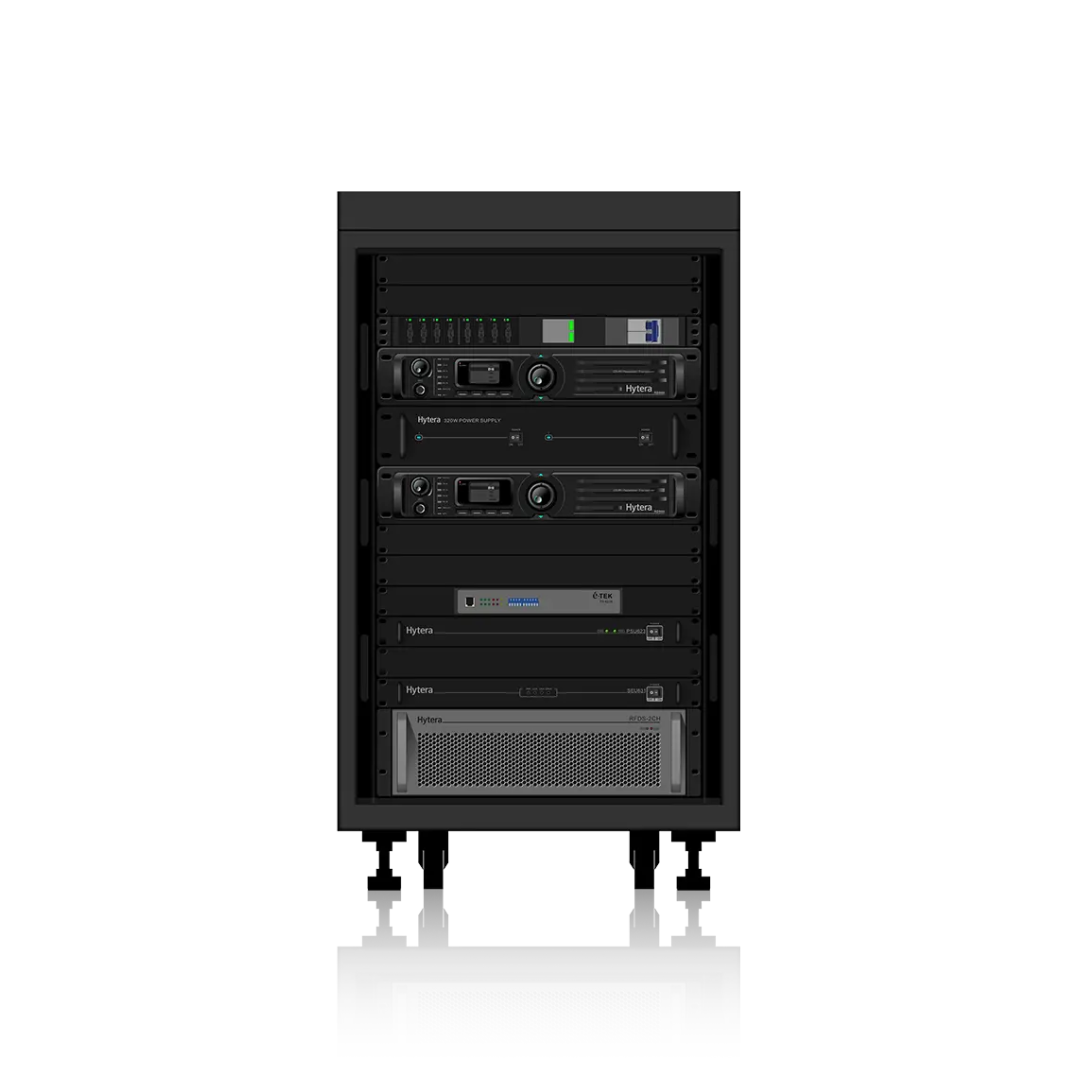

The DS-6310 DMR Simulcast System is developed on the basis of Digital Mobile Radio (DMR) standards and by following a set of principles such as Wide Coverage Range and Smooth Analog-to-Digital Migration, it will effectively solve the shortcomings of current analog products to meet the dispatch requirements of professional customers from the public safety, utility and business sectors.
DS-6310 Highlights
Higher Spectral Efficiency
Simulcast technique reduces to only one pair of frequencies required (one for TX and one for RX) regardless of the number of BSs in the network.
Smooth Roaming and Handover
In a simulcast system, radios can roam and handover easily between different BSs, ongoing communications can continue normally during the handover.
Dynamic Voting
Simulcast systems can provide good voice performance in overlapping areas because radios in the overlapping area can always receive the best voice frame through dynamic voting.
Flexible Network
IP-based architecture enables flexible networking. Multiple transmission links can be used between the BS and the MSO, such as IP, E1, Microwave, wireless bridges, etc. Standard SIP and RTP are used for interconnection with other systems such as PSTN systems, DMR trunking systems.
Selectable Analog/Digital
Simulcast Base Station Channel supports working in both analog and digital modes, to ensure easy migration from analog to digital networks.
Long Time GPS Suspension
In the event of a GPS failure, the Base Station supports a 48-hour suspension via an internal synchronization reference, ensuring the simulcast service runs normally.
DS-6310 Specifications
| System Performance | |
|---|---|
| Max. BS Capacity | 512 |
| Number of Carrier Frequencies | 512 |
| Subnetwork Capacity | 99 |
| Certification | CE/FCC/IC |
| BS Specifications | |
|---|---|
| Standard Compliance | DMR |
| Frequency range | Wired BS/Wireless BS: VHF：136-174MHz UHF3：330-400MHz UHF1：400-470MHz |
| Carrier Signal Capacity | 512 |
| Dimensions (H×W×D) mm | Wired BS： Single-carrier BS (UHF): 355 ×425 ×482.6 Dual-carrier BS (UHF): 900 × 600 × 600 Single-carrier/Dual-carrier BS (VHF): 1,200 ×600 × 600 Wireless BS: 900 ×600 × 600 |
| Heavy | Wired BS Single-carrier BS (UHF): ≤50 kg Dual-carrier BS (UHF)/Single-carrier BS (VHF)/Dual-carrier BS (VHF): ≤400 W Wireless BS：≤110 kg |
| Operating Temperature | Normal: +15 °C to +35 °C Extreme: -30 °C to +60 °C |
| Storage Temperature | -40℃～+85℃ |
| Relative humidity | 20% to 90% RH (non-condensing) |
| Recipient | |
|---|---|
| RX Sensitivity (Static) | Wired BS： Single-carrier BS (UHF): -116 dBm@BER5% Dual-carrier BS (UHF): -118 dBm@BER5% Single-carrier BS (VHF): -115.96 dBm@BER5% Dual-carrier BS (VHF): -120.9 dBm@BER5% Wireless BS: -118 dBm@BER5% |
| Transmitter | |
|---|---|
| Adjust Power Range | 5 to 50 W (CHU) |
