Description

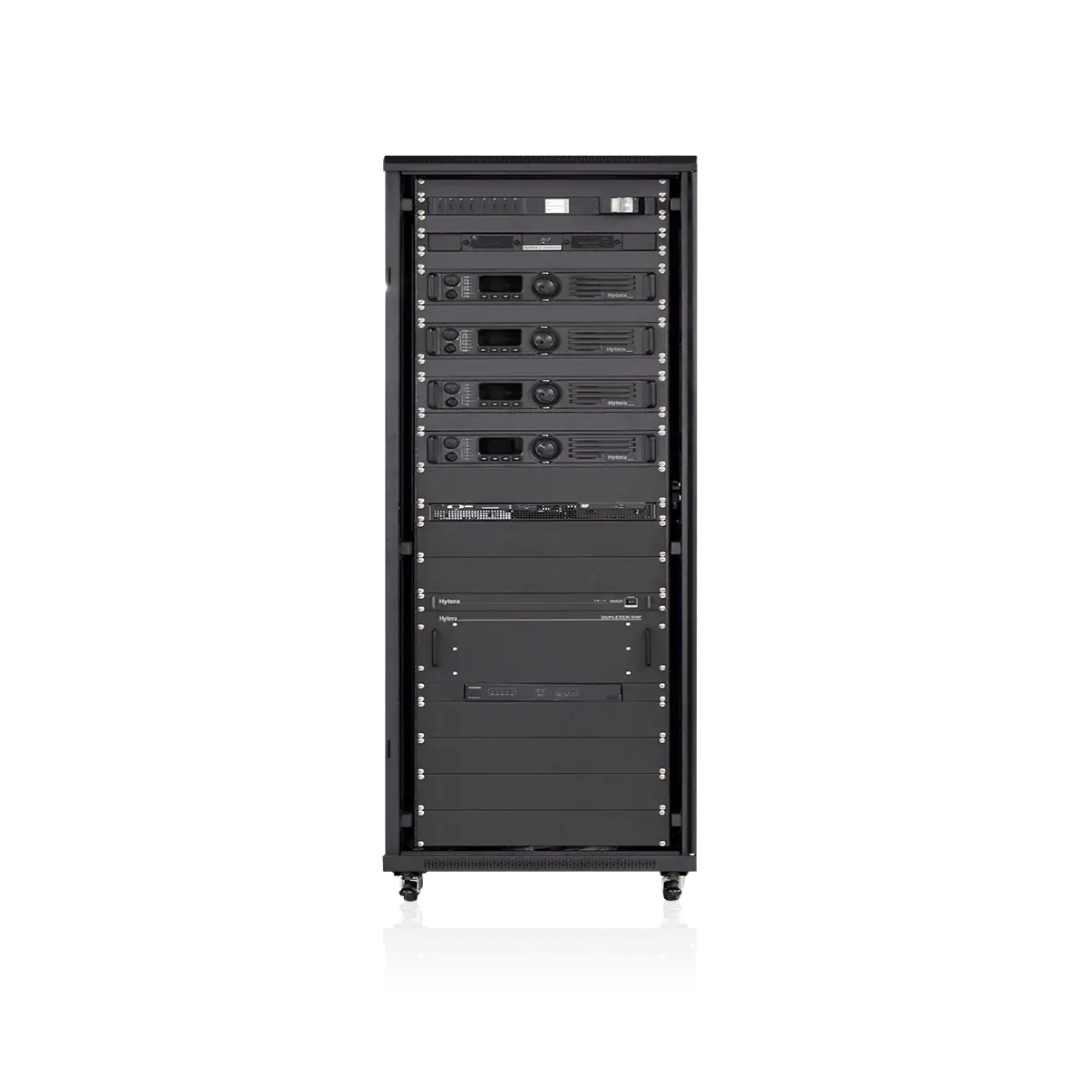

Hytera DMR Trunking Lite is designed for radio users who need to transmit critical business communications. Developed in accordance with ETSI standards, it offers a system tailored to the individual needs of your organization. The modular and flexible system can handle heavy radio traffic, maximizing available capacity across dynamic user groups and challenging single- and multi-site geographies.
DS-6211 Highlights
Carrier Grade Reliability
Combined control mechanisms (distributed and centralized). Redundant mechanisms. Fault-tolerant capabilities.
Multipurpose Services
Maximum frequency usage. Instant PTT. Increased data capacity. Comprehensive security mechanisms. Open API for third-party development. Interconnection with other networks.
Advanced Design
Flexible configuration. Modular design. Maximum of 24 carriers per site.
DS-6211 Specifications
| ystem Performance |
| Customer Capacity per MSO |
10000 |
| Max. Number of Memberships |
1000000 |
| Max. Number of interconnected MSOs |
≤128 |
| MS capacity per BS |
50 |
| BS Specifications |
| Standard Compliance |
PDT/DMR |
| Frequency range |
UHF1：400-470MHz; UHF2：450-520MHz; UHF3：330-400MHz; UHF5：806-914MHz; VHF：136-174MHz |
| Carrier Signal Capacity |
1-8 carriers（Maximum up to 24 carriers） |
| Power Source |
DC 48V; AC 220V |
| Clock Synchronization |
GPS/PTP |
| Operating Temperature |
Normal: 15 to 35°C Extreme: –30 to +60°C |
| Storage Temperature |
-40℃ ～ 85℃ |
| Recipient |
| RX Sensitivity (Static) |
-118dBm@BER≤5% |
| Transmitter |
| Adjust Power Range |
5W～50W |
