Description

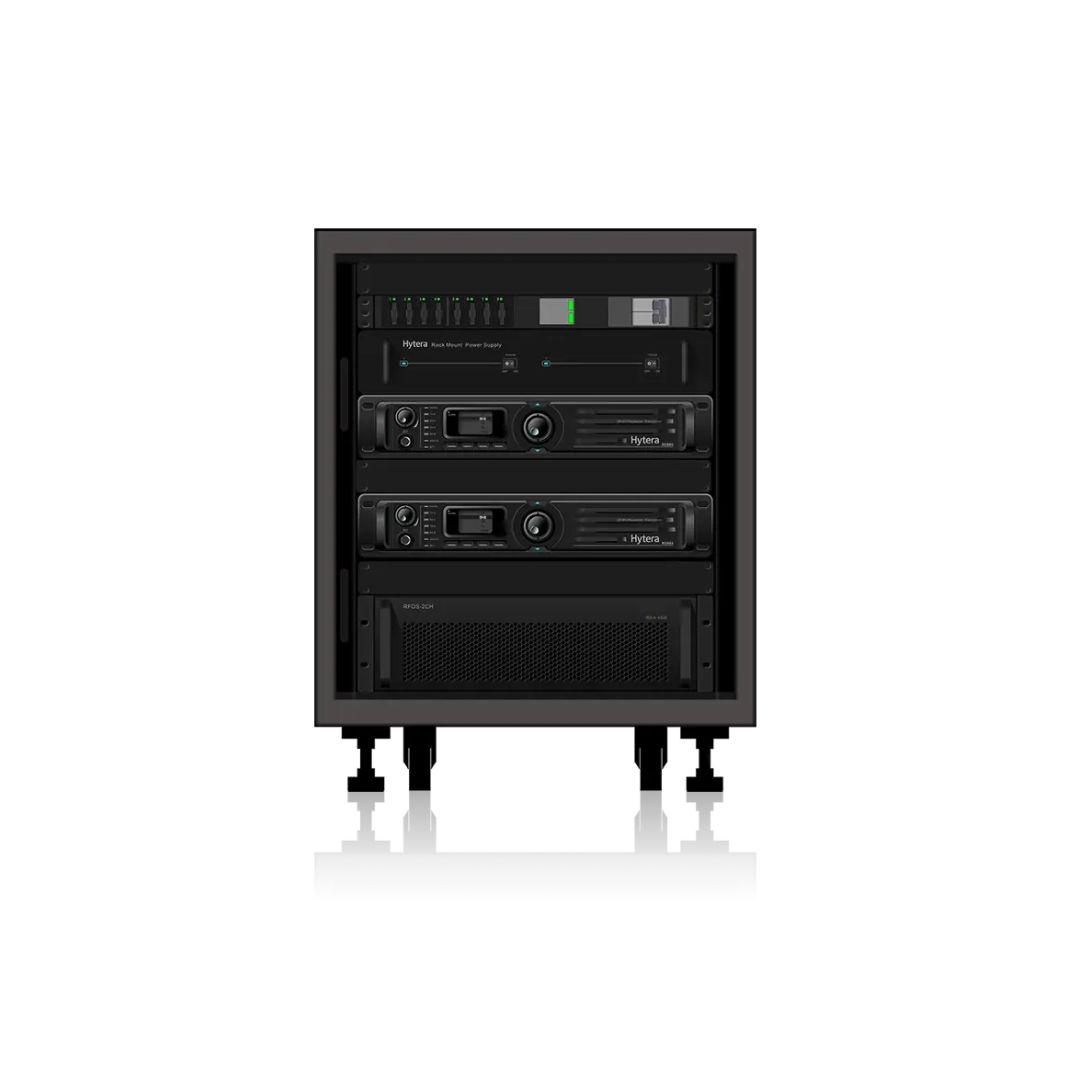

Hytera’s Extended Pseudo Trunk (XPT) is a distributed trunking system without a central system control node. Based on Pseudo Trunk technology and a digital trunking system, it is a cost-effective, scalable solution for increasing the capacity of DMR radio networks.
XPT Highlights
Cost-Effective System
Conventional systems can be upgraded to XPT systems via software, protecting existing investments.
Large Capacity
Each XPT single-site system supports up to 8 voice repeaters and 8 data repeaters, Each XPT single-site system supports up to 1200 radios and 245 groups for communication, One XPT multi-site system supports up to 16 single-sites
Strong Fault Tolerance Capabilities
The XPT system automatically detects failures and takes action to minimize their impact, ensuring proper repeater service in fault-tolerant mode.
No Control Channel
Unlike classic trunk radios, the Hytera XPT system does not use a single control channel. All available radio channels are used for communication.
Call Control
The XPT system uses a “Request and Allow” mechanism to allocate channels. Radios transmit or receive services only after a successful data connection. This avoids call conflicts and prevents interference from radios with strong signals.
Advanced Load Balancing
The XPT system allocates different groups to different parent repeaters, thus minimizing call conflicts on the same repeater and increasing the success rate in call setup.
XPT Specifications
| S Specifications | |
|---|---|
| Frequency range | UHF5：806 MHz～941 MHz; VHF1：136MHz～174MHz; VHF3：210 MHz～270 MHz; UHF1：400MHz～470MHz; UHF2：450MHz～527MHz; UHF3：350MHz～400MHz |
| Power consumption | ≤180 W/carrier |
| Dimensions (H×W×D) mm | 2-carrier: 600×600×675（13U） 4-carrier: 600×600×1750（37U） 8-carrier: 600×600×1750（37U） |
| Heavy | 2-carrier: ≤ 110 kg 4-carrier: ≤ 200 kg 8-carrier: ≤ 400 kg |
| Operating Temperature | -30°C～+60°C |
| Storage Temperature | -40°C～+85°C |
| Relative humidity | Base Station: 5% to 95%RH MSO: 10% to 90%RH |
| Working Height | ≤2000m |
| Mean Time to Repair (MTTR) | 30 minutes |
| Mean Time Between Failures (MTBF) | 100,000 hours |
| Recipient | |
|---|---|
| RX Sensitivity (Static) | -118dBm@BER≤5% |
| Max. Valid RX Level | -10dBm（BER≤0.01%） |
| System Performance | |
|---|---|
| MS Capacity per System | 1200 private calls / 245 group calls |
| Transmitter | |
|---|---|
| TX Power | Repeaters：≤50W; Antenna connector：≤14W |
| Adjust Power Range | 5W~50W |
