Description

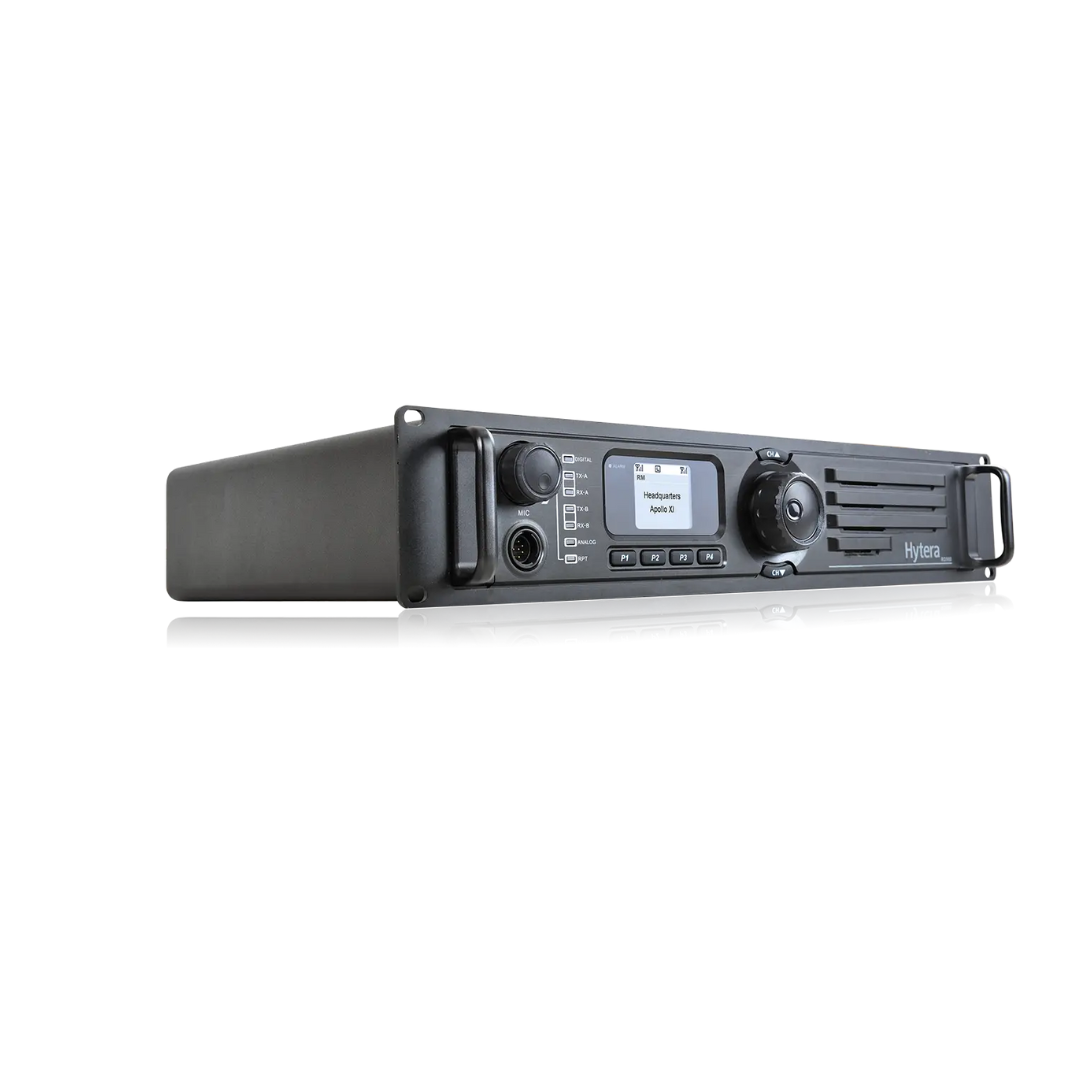

The Hytera RD988S 100W digital repeater is the heart of analog and digital radio networks. With outstanding functionality and high reliability, this repeater overcomes signal barriers to extend the range of radio systems, ensuring reliable communications over longer distances.
RD988S-100W Spotlight
Flexible Hardware Options
There are two hardware options to meet different needs. The first is the RD988S with a 50W output power, and the second is the RD988S with a 100W output power. Both can provide reliable voice and data communications that can reach every corner of your workspace.
IP-Multisite Connection
Multiple RD988S repeaters can be connected with IP ports to form a private radio network, achieving wide area coverage to meet data and voice communications in dispersed locations.
Back to back solution
The RD988S repeater can realize cross-band and cross-system communication in DMR Level 2 through Hytera Back-to-Back Solution. When connected to a Hytera mobile radio, the RD988S can provide a wireless connection between the two systems when there is no IP link.
Automatic Analog/Digital Switching
The RD988S can automatically switch between analog and digital channels, improving frequency sharing during analog-digital migration.
Smart Network Management
Hytera XNMS, a professional network management platform, is adopted to manage the RD988S repeater. XNMS can remotely monitor services, configure parameters, and export statistical reports for network diagnosis.
High Efficiency Technology
Based on TDMA digital technology, one RD988S repeater can provide two voice channels simultaneously, doubling the capacity without additional frequencies and facilities and quite helping users improve efficiency.
RD988S-100W Specifications
| General | |
|---|---|
| Frequency range | UHF1:400-470MHz |
| Channel Capacity | 64 |
| Operating Voltage | DC：28V |
| Work Cycle | 100% |
| Current Drain (Standby) | ≤0.5A |
| Current Drain (Send) | ≤12.5A |
| Dimensions (H×W×D) mm | 483 × 88 × 366 |
| Heavy | 8.5 kg |
| Display | LCD Display:220*176pixel,262000colours,2.0 inch,4 rows |
| Recipient | |
|---|---|
| Rated Audio Power Output | 0.5W |
| Transmitter | |
|---|---|
| RF Power Output | 5-100W (adjustable) |
| Digital Vocoder Type | AMBE+2™, SELP |
| Environment | |
|---|---|
| Operating Temperature | -30℃～+60℃ |
| Storage Temperature | -40℃～+85℃ |
| ESD | IEC 61000-4-2（level 4）; ±8kV（Contact）；±15kV（Air） |
